Home > Products > inch taper roller bearing > > inch taper roller bearing 329013A

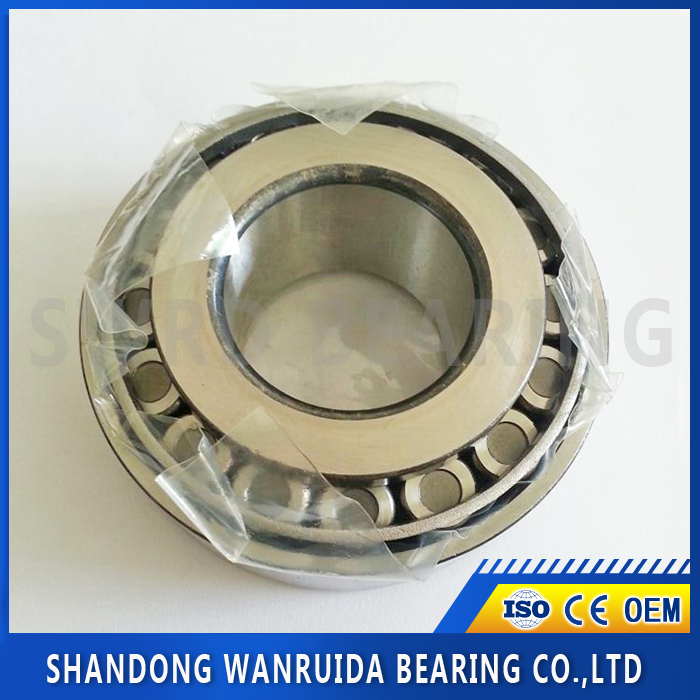

Product name : inch taper roller bearing 329013A

自定义参数 :

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

轴承代号 Specification	外形尺寸 Boundary dimensions(mm)					参考重量 Mass(kg)
轴承代号 Specification	d	D	T	B	C	参考重量 Mass(kg)
02474/02420	28.575	68.263	22.225	22.225	17.463	0.402
02475/02420	31.75	68.263	22.225	22.225	17.463	0.374
02872/02820	28.575	73.025	22.225	22.225	17.463	0.477
09067/09195	19.05	49.225	18.034	19.05	14.288	0.179
102949/102910	45.242	73.431	19.558	19.812	15.748	0.309
104948/104910	50	82	21.5	21.5	17	0.432
104949/104911	50.8	82.55	21.59	22.225	16.51	0.418
11590/11520	15.875	42.863	14.288	14.288	9.525	0.1
11749/11710	17.463	39.878	13.843	14.605	10.668	0.086
11949/11910	19.05	45.237	15.494	16.637	12.065	0.125
12649/12610	21.43	50.005	17.526	18.288	13.97	0.177
12749/12710	21.987	45.237	15.494	16.637	12.065	0.116
12749/12711	21.987	45.975	15.494	16.637	12.065	0.121
1280/1220	22.225	57.15	22.225	22.225	17.436	0.294
14116/14276	30.226	69.012	19.845	19.583	15.875	0.36
14130/14276	33.338	69.012	19.845	19.583	15.875	0.334
14131/14276	33.338	69.012	19.845	19.583	15.875	0.337
15100/15245	25.4	61.999	19.05	20.638	14.288	0.296
15101/15245	25.4	61.999	19.05	20.638	14.288	0.296
15103/15243	26.157	61.913	19.05	20.638	14.288	0.292
15103/15245	26.157	61.999	19.05	20.638	14.288	0.294
15106/15245	26.988	61.999	19.05	20.638	14.288	0.287
15106/15250	26.988	63.5	20.638	20.638	15.875	0.318
15112/15245	28.575	61.999	19.05	20.638	14.288	0.274
15112/15250	28.575	63.5	20.638	20.638	15.875	0.305
15117/15245	29.987	61.999	19.05	20.638	14.288	0.265
15118/15245	30.213	61.999	19.05	20.638	14.288	0.262
15118/15250	30.213	63.5	20.638	20.638	15.875	0.293
15120/15245	30.213	61.999	19.05	20.638	14.288	0.264
15123/15245	31.75	61.999	18.161	19.05	14.288	0.238
15125/15245	31.75	61.999	19.05	20.638	14.288	0.25
17887/17831	45.23	79.985	19.842	20.638	15.08	0.409
18790/18720	50.8	85.001	17.463	17.463	13.495	0.36
201047/201011	39.688	73.025	25.654	22.098	21.336	0.445
205149/205110	50	90	28	28	23	0.751
207049/207010	55	95	29	29	23.5	0.823
21075/21212	19.05	53.975	22.225	21.839	15.875	0.254
211749/211710	65	120	39	38.5	32	1.888
212047/212011	63.5	122.238	38.1	38.354	29.718	1.955
212049/212010	66.675	122.238	38.1	38.354	29.718	1.856
218248/218210	89.974	146.975	40	40	32.499	2.444
220149/220110	99.975	156.975	42	42	34	2.902
24780/24720	41.275	76.2	22.225	23.02	17.463	0.423
25577/25522	42.875	83.058	23.876	25.4	19.114	0.586
25577/25523	42.875	82.931	26.988	25.4	22.225	0.629
25580/25520	44.45	82.931	23.813	25.4	19.05	0.562
25580/25522	44.45	83.058	23.876	25.4	19.114	0.565
25584/25520	44.983	82.931	23.813	25.4	19.05	0.575
25590/25520	45.618	82.931	23.813	25.4	19.05	0.546
25590/25521	45.618	83.058	23.813	25.4	19.05	0.545
25590/25523	45.618	82.931	26.988	25.4	22.225	0.591
2580/2520	31.75	66.421	25.4	25.357	20.638	0.404
2580/2523	31.75	69.85	23.813	25.357	19.05	0.449
25877/25820	34.925	73.025	23.813	24.608	19.05	0.474
25877/25821	34.925	73.025	23.813	24.608	19.05	0.475
25880/25820	36.487	73.025	23.813	24.608	19.05	0.458
27687/27620	82.55	125.413	25.4	25.4	19.845	1.054
27695/27620	84.975	125.413	25.4	25.4	19.845	0.988
2780/2720	36.487	76.2	23.813	25.654	19.05	0.515
2788/2720	38.1	76.2	23.813	25.654	19.05	0.493
2789/2720	39.688	76.2	23.813	25.654	19.05	0.474
2790/2720	33.338	76.2	23.813	25.654	19.05	0.548
28158/28300	40	76.2	20.638	20.94	15.507	0.403
28580/28520	50.8	89.98	24.75	25.4	19.987	0.656
28584/28521	52.388	92.075	24.608	25.4	19.845	0.682
28680/28622	55.563	97.63	24.608	24.608	19.446	0.759
28985/28920	60.325	101.6	25.4	25.4	19.845	0.802
29585/29520	63.5	107.95	25.4	25.4	19.05	0.921
29590/29520	66.675	107.95	25.4	25.4	19.05	0.859
29685/29620	73.025	112.713	25.4	25.4	19.05	0.872
29748/29710	38.1	65.088	18.034	18.288	13.97	0.233
29749/29710	38.1	65.088	18.034	18.288	13.97	0.238
300849/300811	40.987	67.975	17.5	18	13.5	0.238
31594/31520	34.925	76.2	29.37	28.575	23.813	0.62
31597/31520	36.513	76.2	29.37	28.575	23.813	0.6
318448/318410	90	155	44	44	35.5	3.37
33275/33472	69.85	120	29.794	30.163	23.444	1.349
33281/33462	71.438	117.475	30.163	30.163	23.813	1.225
33281/33472	71.438	120	29.794	30.163	23.444	1.307
33287/33462	73.025	117.475	30.163	30.163	23.813	1.183
33287/33472	73.025	120	29.794	30.163	23.444	1.265
3384/3320	41.275	80.167	29.37	30.391	23.813	0.638
33885/33822	44.45	95.25	27.783	28.575	22.225	0.981
33889/33821	50.8	95.25	27.783	28.575	22.225	0.868
33895/33821	53.975	95.25	27.783	28.575	22.225	0.815
3479/3420	34.925	79.375	29.37	29.771	23.813	0.718
3490/3420	38.1	79.375	29.37	29.771	23.813	0.677
355X/352	44.45	90.119	23	21.682	21.808	0.66
355X/354A	44.45	85.001	20.638	21.692	17.463	0.502
359S/354A	46.038	85.001	20.638	21.692	17.463	0.483
368A/362	50.8	90	20	22.225	15.875	0.504
368A/362A	50.8	88.9	20.638	22.225	16.513	0.495
368S/362	51.592	90	20	22.225	15.875	0.495
369A/362	47.625	90	20	22.225	15.875	0.546
369S/362A	47.625	88.9	20.638	22.225	16.513	0.539
3780/3720	50.8	93.264	30.163	30.302	23.813	0.835
3782/3720	44.45	93.264	30.163	30.302	23.813	0.946
387/382	57.15	98.425	21.001	21.946	17.826	0.651
387/382A	57.15	96.838	21.001	21.946	15.875	0.605
387/382S	57.15	96.838	25.4	21.946	20.274	0.673
3872/3820	34.925	85.725	30.162	30.162	23.813	0.899
3877/3820	41.275	85.725	30.162	30.162	23.812	0.81
387A/382	57.15	96.838	21.001	21.946	15.875	0.649
387A/382A	57.15	96.838	21.001	21.946	15.875	0.603
387A/382S	57.15	96.838	25.4	21.946	20.274	0.671
387AS/382A	57.15	96.838	21.001	21.946	15.875	0.599
387AS/382S	57.15	96.838	25.4	21.946	20.274	0.667
388A/382	57.531	98.425	21.001	21.946	17.826	0.644
389A/382	53.975	98.425	21.001	21.946	17.826	0.701
390/394A	57.15	110	21.999	21.996	18.824	0.941
392/394A	61.913	110	21.999	21.996	18.824	0.864
39580/39520	57.15	112.713	30.163	30.163	23.813	1.405
39590/39520	66.675	112.713	30.163	30.163	23.813	1.187
395A/394A	66.675	110	21.999	21.996	18.824	0.783
3980/3920	60.325	112.713	30.163	30.048	23.813	1.301
3982/3920	63.5	112.713	30.163	30.048	23.813	1.224
3984/3920	66.675	112.713	30.163	30.048	23.813	1.153
399A/394A	68.263	110	21.999	21.996	18.824	0.752
418/414	38.1	88.501	26.988	29.083	22.225	0.848
44643/44610	25.4	50.292	14.224	14.732	10.668	0.131
44649/44610	26.988	50.292	14.224	14.732	10.668	0.122
45449/45410	29	50.292	14.224	14.732	10.668	0.115
462/453X	57.15	104.775	30.163	29.317	24.605	1.057
469/453X	57.15	104.775	30.163	29.317	24.605	1.054
480/472	68.263	120	29.794	29.007	24.237	1.32
482/472	69.85	120	29.794	29.007	24.237	1.278
484/472	70	120	29.794	29.007	24.237	1.278
48548/48510	34.925	65.088	18.034	18.288	13.97	0.25
495/492A	82.55	133.35	30.163	29.769	22.225	1.509
495/493	82.55	136.525	30.163	29.769	22.225	1.624
495A/493	76.2	136.525	30.163	29.769	22.225	1.804
496/493	80.963	136.525	30.163	29.769	22.225	1.664
497/493	85.725	136.525	30.163	29.769	22.225	1.522
498/493	84.138	136.525	30.163	29.769	22.225	1.574
501349/501310	41.275	73.431	19.558	19.812	14.732	0.394
516449/516410	82.55	133.35	39.688	39.688	32.545	2.102
518445/518410	88.9	152.4	39.688	39.688	30.163	2.868
529/522	50.8	101.6	34.925	36.068	26.988	1.217
536/532X	47.625	107.95	36.513	36.957	28.575	1.609
537/532X	50.8	107.95	36.513	36.957	28.575	1.538
555S/552A	57.15	123.825	38.1	36.678	30.163	2.156
557A/552A	60.325	123.825	38.1	36.678	30.163	2.056
566/563	69.85	127	36.513	36.17	28.575	1.888
567/563	73.025	127	36.513	36.17	28.575	1.788
575/572	76.2	139.992	36.513	36.098	28.575	2.419
576/572	73.025	139.992	36.513	36.098	28.575	2.519
580/572	82.55	139.992	36.513	36.098	28.575	2.189
593/592	88.9	152.4	39.688	36.322	33.338	2.81
594/592	95.25	152.4	39.688	36.322	33.338	2.55
598/592	92.075	152.4	39.688	36.322	33.338	2.68
603049/603011	45.242	77.788	19.842	19.842	15.08	0.363
623/612	57.15	120.65	41.275	41.275	31.75	2.123
643/632	69.85	136.525	41.275	41.275	31.75	2.56
645/632	71.438	136.525	41.275	41.275	31.75	2.49
67048/67010	31.75	59.131	15.875	16.764	11.811	0.182
68149/68110	34.987	59.131	15.875	16.764	11.938	0.168
683/672	95.25	168.275	41.275	41.275	30.163	3.68
69349/69310	38	63	17	17	13.5	0.198
704649/704610	50	84	22	22	17.5	0.485
710949/710910	65	105	24	23	18.5	0.747
714249/714210	75	120	31	29.5	25	1.276
716648/716610	85	130	30	29	24	1.389
718149/718110	90	145	35	34	27	2.122
719149/719113	95	150	35	34	27	2.196
755/752	76.2	161.925	47.625	48.26	38.1	4.71
802048/802011	41.275	82.55	26.543	25.654	20.193	0.63
803145/803110	41.275	88.9	30.163	29.37	23.02	0.895
803149/803110	44.45	88.9	30.163	29.37	23.02	0.843
804843/804810	44.45	95.25	30.163	29.37	23.02	1.021
804846/804810	47.625	95.25	30.163	29.37	23.02	0.968
804848/804810	48.412	95.25	30.163	29.37	23.02	0.957
807040/807010	44.45	104.775	36.513	36.513	28.575	1.627
807044/807010	49.213	107.775	36.513	36.513	28.575	1.527
807046/807010	50.8	104.775	36.513	36.513	28.575	1.492
813049/813010	70	110	26	25	20.5	0.89
814849/814810	77.788	117.475	25.4	25.4	19.05	0.914
84548/84510	25.4	57.15	19.431	19.431	14.732	0.244
86643/86610	25.4	64.292	21.433	21.433	16.67	0.375
86647/86610	28.575	64.292	21.433	21.433	16.67	0.352
86649/86610	30.163	64.292	21.433	21.433	16.67	0.34
88043/88010	30.163	68.263	22.225	22.225	17.463	0.402
88046/88010	31.75	68.263	22.225	22.225	17.463	0.389
88048/88010	33.338	68.263	22.225	22.225	17.463	0.375
88542/88510	31.75	73.025	29.37	27.783	23.02	0.621
88649/88610	34.925	72.233	25.4	25.4	19.842	0.486
903249/903210	44.45	95.25	30.958	28.575	22.225	0.996
913849/913810	69.85	146.05	41.275	39.688	25.4	2.96
