产品 > 带座外球面轴承 > > UCP300系列外球面轴承

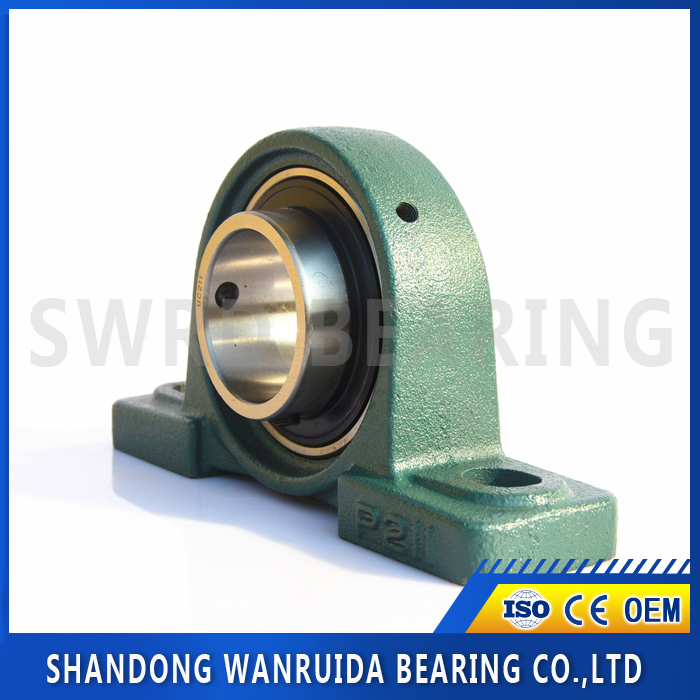

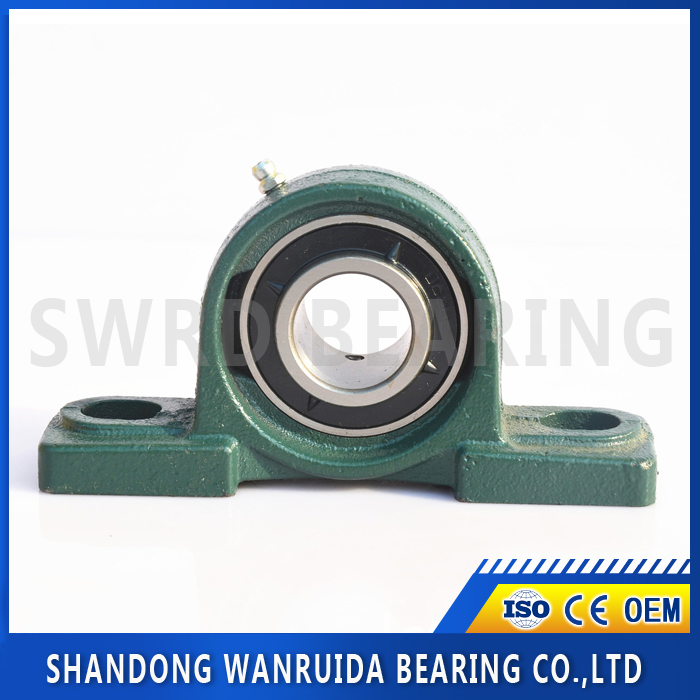

产品名称 : UCP300系列外球面轴承

自定义参数 :

放大

←[上一个产品] [下一个产品]→

产品详细:

Prodcut Name:UCP300 Series

Product Description

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(in)	(mm)	Bearing No.	Housing No.	Housing Wt (kg)
UCP305-14 UCP305-15 UCP305-16 UCP305	7/8 15/16 1	25	45	175	132	45	20	17	15	85	38	15	1/2	M14	UC305-14 UC305-15 UC305-16 UC305	P305	0.90
UCP306-18 UCP306-19 UCP306	1-1/8 1-3/16	30	50	180	140	50	20	17	18	95	43	17	1/2	M14	UC306-18 UC306-19 UC306	P306	1.10
UCP307-20 UCP307-21 UCP307-22 UCP307-23 UCP307	1-1/4 1-5/16 1-3/8 1-7/16	35	56	210	160	56	25	17	20	106	48	19	1/2	M14	UC307-20 UC307-21 UC307-22 UC307-23 UC307	P307	1.95
UCP308-24 UCP308-25 UCP308	1-1/2 1-9/16	40	60	220	170	60	27	17	22	116	52	19	1/2	M14	UC308-24 UC308-25 UC308	P308	2.20
UCP309-26 UCP309-27 UCP309-28 UCP309	1-5/8 1-11/16 1-3/4	45	67	245	190	67	30	20	24	129	57	22	5/8	M16	UC309-26 UC309-27 UC309-28 UC309	P309	3.30
UCP310-30 UCP310-31 UCP310	1-7/8 1-15/16	50	75	275	212	75	35	20	27	143	61	22	5/8	M16	UC310-30 UC310-31 UC310	P310	4.80
UCP311-32 UCP311-34 UCP311-35 UCP311	2 2-3/8 2-3/16	55	80	310	236	80	38	20	30	154	66	25	5/8	M16	UC311-32 UC311-34 UC311-35 UC311	P311	5.30
UCP312-36 UCP312-38 UCP312-39 UCP312	2-1/4 2-3/8 2-7/16	60	85	330	250	85	38	25	32	165	71	26	3/4	M20	UC312-36 UC312-38 UC312-39 UC312	P312	6.30
UCP313-40 UCP313	2-1/2	65	90	340	260	90	38	25	33	176	75	30	3/4	M20	UC313-40 UC313	P313	8.00
UCP314-44 UCP314	2-3/4	70	95	360	280	90	40	27	35	187	78	33	7/8	M22	UC314-44 UC314	P314	8.30
UCP315-48 UCP315	3	75	100	380	290	100	40	27	35	198	82	32	7/8	M22	UC315-48 UC315	P315	9.50
UCP316-50 UCP316	3-1/8	80	106	400	300	110	40	27	40	210	86	34	7/8	M22	UC316-50 UC315	P316	12.50
UCP317-52 UCP317	3-1/4	85	112	420	320	110	45	33	40	220	96	40	1	M27	UC317-52 UC317	P317	14.50
UCP318-56 UCP318	3-1/2	90	118	430	330	110	45	33	45	235	96	40	1	M27	UC318-56 UC318	P318	20.40
UCP319-60 UCP319	3-3/4	95	125	470	360	120	50	36	45	250	103	41	1-1/8	M30	UC319-60 UC319	P319	22.30
UCP320-64 UCP320	4	100	140	490	380	120	50	36	50	275	108	42	1-1/8	M30	UC320-64 UC320	P320	25.00
UCP321		105	140	490	380	120	50	36	50	280	112	44	1-1/8	M30	UC321	P321	24.00
UCP322		110	150	520	400	140	55	40	55	300	117	46		M33	UC322	P322	27.50
UCP324		120	160	570	450	140	55	40	65	320	126	51		M33	UC324	P324	32.30
UCP326		130	180	600	480	140	55	40	75	355	135	54		M33	UC326	P326	41.00
UCP328		140	200	620	500	140	55	40	75	390	145	59		M33	UC328	P328	50.00
