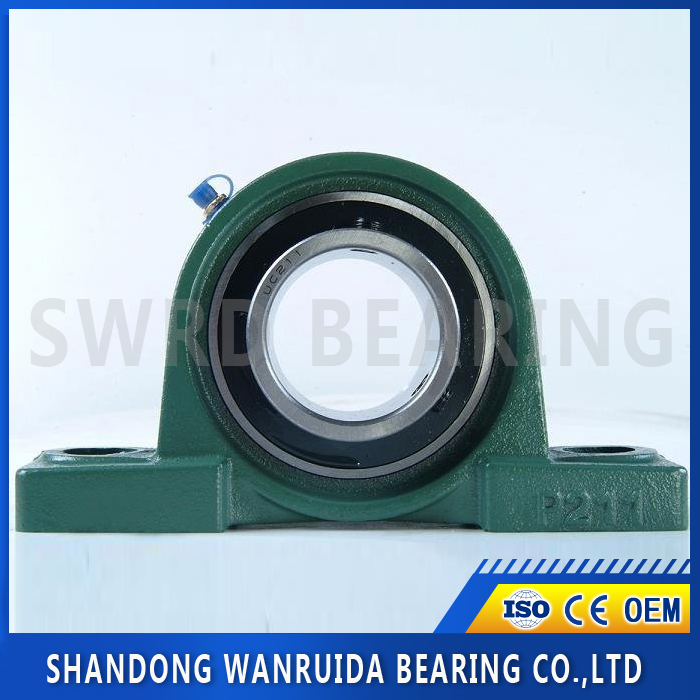

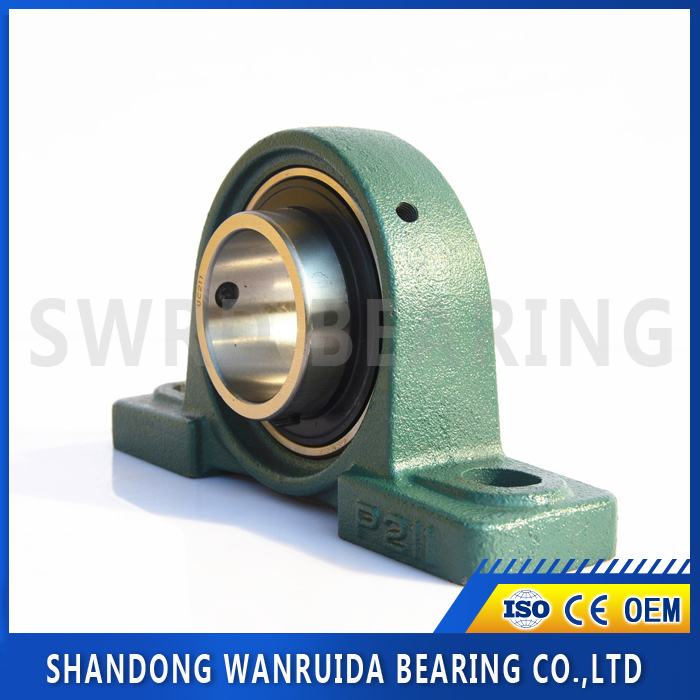

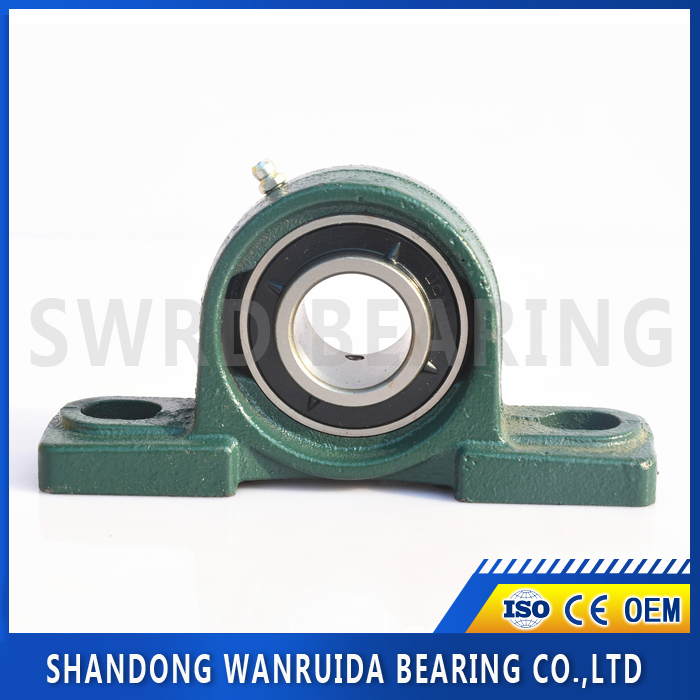

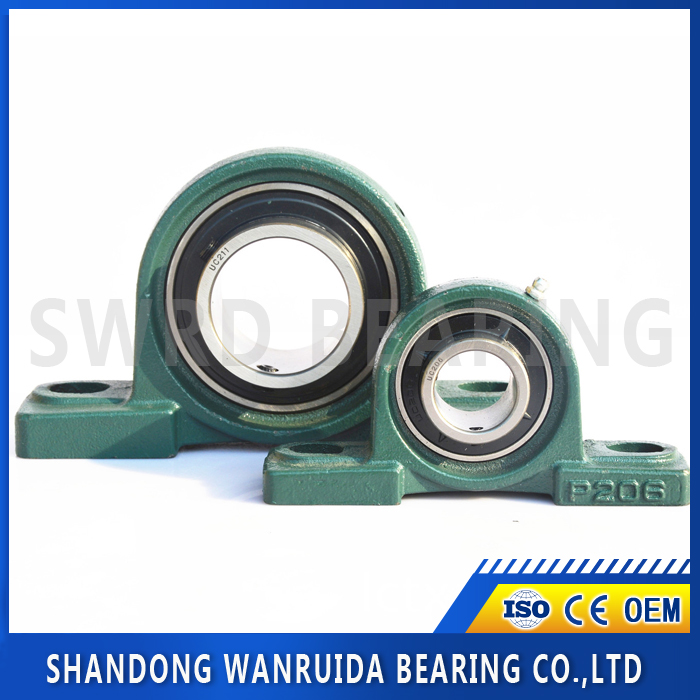

产品名称 : UCP200系列外球面轴承尺寸

自定义参数 :

放大

←[上一个产品] [下一个产品]→

产品详细:

Prodcut Name:UCP200 Series

Product Description

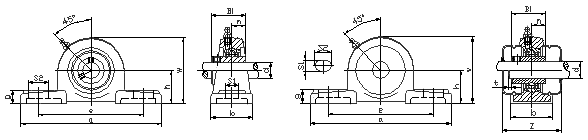

BearingUint No.	Shaft Dia d		Dimensinons(mm)												Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			h	a	e	b	S2	S1	g	w	t	Z	Bi	n	(mm)	(in)
	(in)	(mm)
UCP201-8	1/2		30.2	127	95	38	19	13	14	62	2	51	31	12.7	M10	3/8	UC201-8	P203	0.33
UCP202-9	9/16																UC202-9
UCP202-10	5/8																UC202-10
UCP203-11	11/16																UC203-11
UCP201		12															UC201
UCP202		15															UC202
UCP203		17															UC203
UCP204-12	3/4		33.3	127	95	38	19	13	14	65	2	51	31	12.7	M10	3/8	UC204-12	P204	0.46
UCP204		20															UC204
UCP205-13	13/16	25	36.5	140	105	38	19	13	15	71	2	57	34.1	14.3	M10	3/8	UC205-13	P205	0.60
UCP205-14	7/8																UC205-14
UCP205-15	15/16																UC205-15
UCP205-16	1																UC205-16
UCP205																	UC205
UCP206-17	1-1/16	30	42.9	165	121	48	21	17	17	83	2	62	38.1	15.9	M14	1/2	UC206-17	P206	0.97
UCP206-18	1-1/8																UC206-18
UCP206-19	1-3/16																UC206-19
UCP206-20	1-1/4																UC206-20
UCP206																	UC206
UCP207-20	1-1/4	35	47.6	167	127	48	21	17	18	93	3	72	42.9	17.5	M14	1/2	UC207-20	P207	1.00
UCP207-21	1-5/16																UC207-21
UCP207-22	1-3/8																UC207-22
UCP207-23	1-7/16																UC207-23
UCP207																	UC207
UCP208-24	1-1/2	40	49.2	184	137	54	21	17	18	98	3	82	49.2	19.0	M14	1/2	UC208-24	P208	1.30
UCP208-25	1-9/16																UC208-25
UCP208																	UC208
UCP209-26	1-5/8	45	54	190	146	54	21	17	20	106	3	82	49.2	19.0	M14	1/2	UC209-26	P209	1.40
UCP209-27	1-11/16																UC209-27
UCP209-28	1-3/4																UC209-28
UCP209																	UC209
UCP210-29	1-13/16	50	57.2	206	159	60	25	20	21	114	3	87	51.6	19.0	M16	5/8	UC210-29	P210	1.83
UCP210-30	1-7/8																UC210-30
UCP210-31	1-15/16																UC210-31
UCP210-32	2																UC210-32
UCP210																	UC210
UCP211-32	2	55	63.5	219	171	60	25	20	23	126	4	92	55.6	22.2	M16	5/8	UC211-32	P211	2.4
UCP211-33	2-1/16																UC211-33
UCP211-34	2-1/8																UC211-34
UCP211-35	2-3/16																UC211-35
UCP211																	UC211
UCP212-36	2-1/4	60	69.8	241	184	70	25	20	25	138	4	102	65.1	25.4	M16	5/8	UC212-36	P212	2.8
UCP212-37	2-5/16																UC212-37
UCP212-38	2-3/8																UC212-38
UCP212-39	2-7/16																UC212-39
UCP212																	UC212
UCP213-40	2-1/2	65	76.2	265	203	70	29	25	27	151	4	107	65.1	25.4	M20	3/4	UC213-40	P213	3.5
UCP213-41	2-9/16																UC213-41
UCP213																	UC213
UCP214-42	2-5/8	70	79.4	266	210	72	31	25	27	157			74.6	30.2	M20	3/4	UC214-42	P214	4.45
UCP214-43	2-11/16																UC214-43
UCP214-44	2-3/4																UC214-44
UCP214																	UC214
UCP215-45	2-13/16	75	82.6	275	217	74	31	25	28	163			77.8	33.3	M20	3/4	UC215-45	P215	4.9
UCP215-46	2-7/8																UC215-46
UCP215-47	2-15/16																UC215-47
UCP215-48	3																UC215-48
UCP215																	UC215
UCP216-50	3-1/8	80	88.9	292	232	78	31	25	30	175			82.6	33.3	M20	3/4	UC216-50	P216	5.8
UCP216																	UC216
UCP217-52	3-1/4	85	95.2	310	247	83	31	25	32	187			85.7	34.1	M20	3/4	UC217-52	P217	6.9
UCP217																	UC217
UCP218-56	3-1/2	90	101.6	327	262	88	33	27	33	200			96.0	39.7	M22	7/8	UC218-56	P218	8.10
UCP218																	UC218
