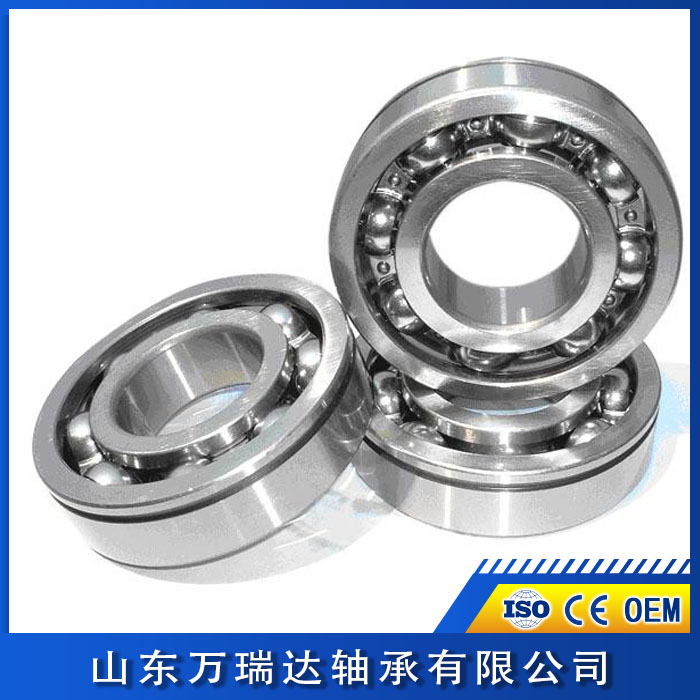

Product name : Deep Groove Ball Bearing with Snap ring
自定义参数 :
自定义参数 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:


Deep Groove Ball Bearing with Snap ring

带止动环深沟球轴承尺寸表


Dimensions(mm) Basic Load rating Bearing No. Limiting Speed Weight
d D B R r (kN) (rpm) (kg)
      (min) (min) Cr Cor Grease Oil
10 30 9 0.6 0.3 5.10 2.40 6200N 24000 29000 0.032
10 35 11 0.6 0.5 8.10 3.45 6300N 22000 27000 0.053
12 28 8 0.3 0.3 5.1 2.39 6001N 28000 32000 0.024
12 32 10 0.6 0.3 6.80 3.05 6201N 22000 27000 0.037
12 37 12 1 0.5 9.70 4.20 6301N 20000 25000 0.060
15 32 9 0.3 0.3 5.6 2.84 6002N 24000 28000 0.033
15 35 11 0.6 0.5 7.65 3.75 6202N 20000 24000 0.045
15 42 13 1 0.5 11.4 5.45 6302N 17000 20000 0.082
17 35 10 0.3 0.3 6.0 3.25 6003N 22000 26000 0.041
17 40 12 0.6 0.5 9.55 4.80 6203N 17000 21000 0.065
17 47 14 1 0.5 13.6 6.65 6303N 15000 18000 0.115
20 42 12 0.6 0.5 9.40 5.05 6004N 17000 21000 0.069
20 47 14 1 0.5 12.8 6.65 6204N 15000 17000 0.106
20 52 15 1.1 0.5 15.9 7.85 6304N 14000 17000 0.144
25 47 12 0.6 0.5 10.1 5.85 6005N 15000 18000 0.080
25 52 15 1 0.5 14.0 7.85 6205N 13000 15000 0.128
25 62 17 1.1 0.5 20.6 11.3 6305N 11000 13000 0.232
30 55 13 1 0.5 13.2 8.25 6006N 13000 15000 0.116
30 62 16 1 0.5 19.5 11.3 6206N 11000 13000 0.199
30 72 19 1.1 0.5 26.7 15.0 6306N 9600 12000 0.346
35 62 14 1 0.5 15.9 10.3 6007N 11000 13000 0.155
35 72 17 1.1 0.5 25.7 15.4 6207N 9200 11000 0.288
35 80 21 1.5 0.5 33.4 19.3 6307N 8500 10000 0.457
40 68 15 1 0.5 16.7 11.5 6008N 10000 12000 0.192
40 80 18 1.1 0.5 29.1 17.8 6208N 8300 10000 0.366
40 90 23 1.5 0.5 40.7 24.0 6308N 7700 9200 0.633
45 75 16 1 0.5 21.0 15.1 6009N 9200 11000 0.245
45 85 19 1.1 0.5 32.7 20.3 6209N 7700 9200 0.407
45 100 25 1.5 0.5 48.9 29.5 6309N 6800 8100 0.833
50 80 16 1 0.5 21.8 16.6 6010N 8400 9900 0.261
50 90 20 1.1 0.5 35.1 23.3 6210N 7100 8500 0.463
50 110 27 2 0.5 62.0 38.3 6310N 6100 7300 1.07
55 90 18 1.1 0.5 28.3 21.2 6011N 7600 8900 0.385
55 100 21 1.5 0.5 43.4 29.4 6211N 6300 7600 0.607
55 120 29 2 0.5 71.6 45.0 6311N 5600 6700 1.37
60 95 18 1.1 0.5 29.4 23.2 6012N 7100 8400 0.415
60 110 22 1.5 0.5 52.4 36.2 6212N 5700 6900 0.783
60 130 31 2.1 0.5 81.9 52.2 6312N 5200 6200 1.70
65 100 18 1.1 0.5 30.5 25.2 6013N 6600 7800 0.435
65 120 23 1.5 0.5 57.2 40.1 6213N 5400 6400 0.990
65 140 33 2.1 0.5 92.7 59.9 6313N 4800 5800 2.08
70 125 24 1.5 0.5 62.2 44.1 6214N 5100 6100 1.07
70 150 35 2.1 0.5 104 68.2 6314N 4500 5400 2.52
75 130 25 1.5 0.5 67.4 48.3 6215N 4800 5800 1.18
75 160 37 2.1 0.5 113 77.2 6315N 4200 5000 3.02
