6300 Series

Prodcut Name:6300 Series

Product Description

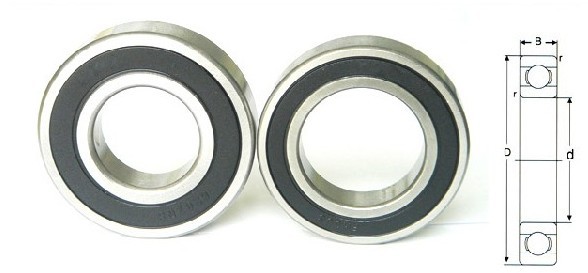

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)	Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	(Approx.)
10	35	11	0.6	8.20	3.50	23,000	0.053	6300-2RS
12	37	12	1	9.70	4.20	20,000	0.06	6301-2RS
15	42	13	1	11.4	5.45	17,000	0.082	6302-2RS
17	47	14	1	13.5	6.55	16,000	0.115	6303-2RS
20	52	15	1.1	15.9	7.90	14,000	0.144	6304-2RS
25	62	17	1.1	21.2	10.9	12,000	0.232	6305-2RS
30	72	19	1.1	26.7	15.0	10,000	0.36	6306-2RS
35	80	21	1.5	33.5	19.1	8,800	0.457	6307-2RS
40	90	23	1.5	40.5	24.0	7,800	0.63	6308-2RS
45	100	25	1.5	53.0	32.0	7,000	0.814	6309-2RS
50	110	27	2	62.0	38.5	6,400	1.07	6310-2RS
55	120	29	2	71.5	45.0	5,800	1.37	6311-2RS
60	130	31	2.1	82.0	52.0	5,400	1.73	6312-2RS
65	140	33	2.1	92.5	60.0	4,900	2.08	6313-2RS
70	150	35	2.1	104	68.0	4,600	2.52	6314-2RS
75	160	37	2.1	113	77.0	4,300	3.02	6315-2RS
80	170	39	2.1	123	86.5	4,000	3.59	6316-2RS
85	180	41	3	133	97.0	3,800	4.23	6317-2RS
90	190	43	3	143	107	3,600	4.91	6318-2RS
95	200	45	3	153	119	3,300	5.67	6319-2RS
100	215	47	3	173	141	3,200	7	6320-2RS
105	225	49	3	184	153	3,000	8.05	6321-2RS
110	240	50	3	205	179	2,900	9.54	6322-2RS
22	56	16	1.1	1,880	945	11,000	0.176	63/22-2RS
28	68	18	1.1	2,730	1,430	8,900	0.284	63/28-2RS
32	75	20	1.1	3,050	1,730	7,700	0.382	63/32-2RS
32	75	20	1.1	3,050	1,730	7,700	0.382	63/32-ZZ
28	68	18	1.1	2,730	1,430	8,900	0.284	63/28-ZZ
22	56	16	1.1	1,880	945	11,000	0.176	63/22-ZZ
110	240	50	3	205	179	2,900	9.54	6322-ZZ
105	225	49	3	184	153	3,000	8.05	6321-ZZ
100	215	47	3	173	141	3,200	7	6320-ZZ
95	200	45	3	153	119	3,300	5.67	6319-ZZ
90	190	43	3	143	107	3,600	4.91	6318-ZZ
85	180	41	3	133	97.0	3,800	4.23	6317-ZZ
80	170	39	2.1	123	86.5	4,000	3.59	6316-ZZ
75	160	37	2.1	113	77.0	4,300	3.02	6315-ZZ
70	150	35	2.1	104	68.0	4,600	2.52	6314-ZZ
65	140	33	2.1	92.5	60.0	4,900	2.08	6313-ZZ
60	130	31	2.1	82.0	52.0	5,400	1.73	6312-ZZ
55	120	29	2	71.5	45.0	5,800	1.37	6311-ZZ
50	110	27	2	62.0	38.5	6,400	1.07	6310-ZZ
45	100	25	1.5	53.0	32.0	7,000	0.814	6309-ZZ
40	90	23	1.5	40.5	24.0	7,800	0.63	6308-ZZ
35	80	21	1.5	33.5	19.1	8,800	0.457	6307-ZZ
30	72	19	1.1	26.7	15.0	10,000	0.36	6306-ZZ
25	62	17	1.1	21.2	10.9	12,000	0.232	6305-ZZ
20	52	15	1.1	15.9	7.90	14,000	0.144	6304-ZZ
17	47	14	1	13.5	6.55	16,000	0.115	6303-ZZ
15	42	13	1	11.4	5.45	17,000	0.082	6302-ZZ
12	37	12	1	9.70	4.20	20,000	0.06	6301-ZZ
10	35	11	0.6	8.20	3.50	23,000	0.053	6300-ZZ

ZNR

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
95	200	45	3	153	119	3,300	3,900	5.77	6319-ZNR
10	35	11	0.6	8.20	3.50	23,000	27,000	0.055	6300-ZNR
12	37	12	1	9.70	4.20	20,000	24,000	0.062	6301-ZNR
15	42	13	1	11.4	5.45	17,000	21,000	0.084	6302-ZNR
17	47	14	1	13.5	6.55	16,000	19,000	0.119	6303-ZNR
20	52	15	1.1	15.9	7.90	14,000	17,000	0.148	6304-ZNR
25	62	17	1.1	21.2	10.9	12,000	14,000	0.239	6305-ZNR
30	72	19	1.1	26.7	15.0	10,000	12,000	0.370	6306-ZNR
35	80	21	1.5	33.5	19.1	8,800	10,000	0.468	6307-ZNR
40	90	23	1.5	40.5	24.0	7,800	9,200	0.647	6308-ZNR
45	100	25	1.5	53.0	32.0	7,000	8,200	0.833	6309-ZNR
50	110	27	2	62.0	38.5	6,400	7,500	1.09	6310-ZNR
55	120	29	2	71.5	45.0	5,800	6,800	1.41	6311-ZNR
60	130	31	2.1	82.0	52.0	5,400	6,300	1.77	6312-ZNR
65	140	33	2.1	92.5	60.0	4,900	5,800	2.13	6313-ZNR
70	150	35	2.1	104	68.0	4,600	5,400	2.57	6314-ZNR
75	160	37	2.1	113	77.0	4,300	5,000	3.07	6315-ZNR
80	170	39	2.1	123	86.5	4,000	4,700	3.67	6316-ZNR
85	180	41	3	133	97.0	3,800	4,500	4.32	6317-ZNR
90	190	43	3	143	107	3,600	4,200	5.00	6318-ZNR
