6200 Series

Prodcut Name:6200 Series

Product Description

Open

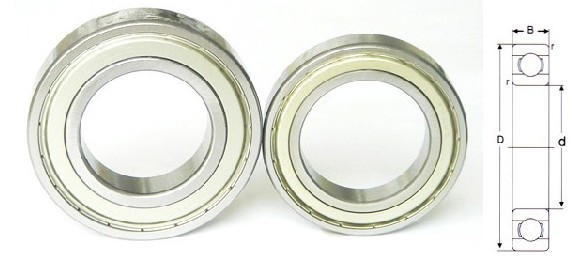

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
10	30	9	0.6	5.1	2.39	25,000	30,000	0.032	6200
12	32	10	0.6	6.1	2.75	22,000	26,000	0.037	6201
15	35	11	0.6	7.75	3.6	19,000	23,000	0.045	6202
17	40	12	0.6	9.6	4.6	18,000	21,000	0.066	6203
20	47	14	1	12.8	6.65	16,000	18,000	0.106	6204
25	52	15	1	14	7.85	13,000	15,000	0.128	6205
30	62	16	1	19.5	11.3	11,000	13,000	0.199	6206
35	72	17	1.1	25.7	15.3	9,800	11,000	0.288	6207
40	80	18	1.1	29.1	17.8	8,700	10,000	0.366	6208
45	85	19	1.1	32.5	20.4	7,800	9,200	0.398	6209
50	90	20	1.1	35	23.2	7,100	8,300	0.454	6210
55	100	21	1.5	43.5	29.2	6,400	7,600	0.601	6211
60	110	22	1.5	52.5	36	6,000	7,000	0.783	6212
65	120	23	1.5	57.5	40	5,500	6,500	0.99	6213
70	125	24	1.5	62	44	5,100	6,000	1.07	6214
75	130	25	1.5	66	49.5	4,800	5,600	1.18	6215
80	140	26	2	72.5	53	4,500	5,300	1.4	6216
85	150	28	2	83.5	64	4,200	5,000	1.79	6217
90	160	30	2	96	71.5	4,000	4,700	2.15	6218
95	170	32	2.1	109	82	3,700	4,400	2.62	6219
100	180	34	2.1	122	93	3,500	4,200	3.14	6220
105	190	36	2.1	133	105	3,400	4,000	3.7	6221
110	200	38	2.1	144	117	3,200	3,800	4.36	6222
120	215	40	2.1	155	131	2,900	3,400	5.15	6224
130	230	40	3	167	146	2,700	3,100	5.82	6226
140	250	42	3	166	150	2,500	2,900	7.57	6228
150	270	45	3	176	168	2,300	2,700	9.41	6230
160	290	48	3	185	186	2,100	2,500	11.7	6232
170	310	52	4	212	223	2,000	2,400	14.5	6234
180	320	52	4	227	241	1,900	2,200	15.1	6236
190	340	55	4	255	281	1,800	2,100	18.2	6238
200	360	58	4	269	310	1,700	2,000	21.6	6240
220	400	65	4	297	365	1,500	1,800	30.2	6244
22	50	14	1	1,320	690	14,000	17,000	0.117	62/22
28	58	16	1	1,830	995	12,000	14,000	0.171	62/28
32	65	17	1	2,110	1,190	11,000	12,000	0.226	62/32

ZZ, 2RS

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)	Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	(Approx.)
10	30	9	0.6	5.10	2.39	25,000	0.032	6200-2RS
12	32	10	0.6	6.10	2.75	22,000	0.037	6201-2RS
15	35	11	0.6	7.75	3.60	19,000	0.045	6202-2RS
17	40	12	0.6	9.60	4.60	18,000	0.066	6203-2RS
20	47	14	1	12.8	6.65	16,000	0.106	6204-2RS
25	52	15	1	14.0	7.85	13,000	0.128	6205-2RS
30	62	16	1	19.5	11.3	11,000	0.199	6206-2RS
35	72	17	1.1	25.7	15.3	9,800	0.288	6207-2RS
40	80	18	1.1	29.1	17.8	8,700	0.366	6208-2RS
45	85	19	1.1	32.5	20.4	7,800	0.398	6209-2RS
50	90	20	1.1	35.0	23.2	7,100	0.454	6210-2RS
55	100	21	1.5	43.5	29.2	6,400	0.601	6211-2RS
60	110	22	1.5	52.5	36.0	6,000	0.783	6212-2RS
65	120	23	1.5	57.5	40.0	5,500	0.99	6213-2RS
70	125	24	1.5	62.0	44.0	5,100	1.07	6214-2RS
75	130	25	1.5	66.0	49.5	4,800	1.18	6215-2RS
80	140	26	2	72.5	53.0	4,500	1.4	6216-2RS
85	150	28	2	83.5	64.0	4,200	1.79	6217-2RS
90	160	30	2	96.0	71.5	4,000	2.15	6218-2RS
95	170	32	2.1	109	82.0	3,700	2.62	6219-2RS
100	180	34	2.1	122	93.0	3,500	3.14	6220-2RS
105	190	36	2.1	133	105	3,400	3.7	6221-2RS
110	200	38	2.1	144	117	3,200	4.36	6222-2RS
120	215	40	2.1	155	131	2,900	5.15	6224-2RS
22	50	14	1	1,320	690	12,000	0.117	62/22-2RS
28	58	16	1	1,830	995	9,700	0.171	62/28-2RS
32	65	17	1	2,110	1,190	8,400	0.226	62/32-2RS
32	65	17	1	2,110	1,190	8,400	0.226	62/32-ZZ
28	58	16	1	1,830	995	9,700	0.171	62/28-ZZ
22	50	14	1	1,320	690	12,000	0.117	62/22-ZZ
120	215	40	2.1	155	131	2,900	5.15	6224-ZZ
110	200	38	2.1	144	117	3,200	4.36	6222-ZZ
105	190	36	2.1	133	105	3,400	3.7	6221-ZZ
100	180	34	2.1	122	93.0	3,500	3.14	6220-ZZ
95	170	32	2.1	109	82.0	3,700	2.62	6219-ZZ
90	160	30	2	96.0	71.5	4,000	2.15	6218-ZZ
85	150	28	2	83.5	64.0	4,200	1.79	6217-ZZ
80	140	26	2	72.5	53.0	4,500	1.4	6216-ZZ
75	130	25	1.5	66.0	49.5	4,800	1.18	6215-ZZ
70	125	24	1.5	62.0	44.0	5,100	1.07	6214-ZZ
65	120	23	1.5	57.5	40.0	5,500	0.99	6213-ZZ
60	110	22	1.5	52.5	36.0	6,000	0.783	6212-ZZ
55	100	21	1.5	43.5	29.2	6,400	0.601	6211-ZZ
50	90	20	1.1	35.0	23.2	7,100	0.454	6210-ZZ
45	85	19	1.1	32.5	20.4	7,800	0.398	6209-ZZ
40	80	18	1.1	29.1	17.8	8,700	0.366	6208-ZZ
35	72	17	1.1	25.7	15.3	9,800	0.288	6207-ZZ
30	62	16	1	19.5	11.3	11,000	0.199	6206-ZZ
25	52	15	1	14.0	7.85	13,000	0.128	6205-ZZ
20	47	14	1	12.8	6.65	16,000	0.106	6204-ZZ
17	40	12	0.6	9.60	4.60	18,000	0.066	6203-ZZ
15	35	11	0.6	7.75	3.60	19,000	0.045	6202-ZZ
12	32	10	0.6	6.10	2.75	22,000	0.037	6201-ZZ
10	30	9	0.6	5.10	2.39	25,000	0.032	6200-ZZ

ZNR

Boundary dimensions(mm)				Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
90	160	30	2	96.0	71.5	4,000	4,700	2.20	6218-ZNR
85	150	28	2	83.5	64.0	4,200	5,000	1.84	6217-ZNR
80	140	26	2	72.5	53.0	4,500	5,300	1.45	6216-ZNR
75	130	25	1.5	66.0	49.5	4,800	5,600	1.22	6215-ZNR
70	125	24	1.5	62.0	44.0	5,100	6,000	1.11	6214-ZNR
65	120	23	1.5	57.5	40.0	5,500	6,500	1.03	6213-ZNR
60	110	22	1.5	52.5	36.0	6,000	7,000	0.804	6212-ZNR
55	100	21	1.5	43.5	29.2	6,400	7,600	0.620	6211-ZNR
50	90	20	1.1	35.0	23.2	7,100	8,300	0.471	6210-ZNR
45	85	19	1.1	32.5	20.4	7,800	9,200	0.409	6209-ZNR
40	80	18	1.1	29.1	17.8	8,700	10,000	0.377	6208-ZNR
35	72	17	1.1	25.7	15.3	9,800	11,000	0.298	6207-ZNR
30	62	16	1	19.5	11.3	11,000	13,000	0.206	6206-ZNR
25	52	15	1	14.0	7.85	13,000	15,000	0.132	6205-ZNR
20	47	14	1	12.8	6.65	16,000	18,000	0.110	6204-ZNR
17	40	12	0.6	9.60	4.60	18,000	21,000	0.068	6203-ZNR
105	190	36	2.1	133	105	3,400	4,000	3.79	6221-ZNR
110	200	38	2.1	144	117	3,200	3,800	4.46	6222-ZNR
10	30	9	0.6	5.10	2.39	25,000	30,000	0.034	6200-ZNR
15	35	11	0.6	7.75	3.60	19,000	23,000	0.047	6202-ZNR
12	32	10	0.6	6.10	2.75	22,000	26,000	0.039	6201-ZNR
100	180	34	2.1	122	93.0	3,500	4,200	3.23	6220-ZNR
95	170	32	2.1	109	82.0	3,700	4,400	2.70	6219-ZNR
